Jinan Avitt International Trade Co., Ltd-HYCM Tower Crane emma1109@foxmail.com 0086-182-54159408
製品詳細
起源の場所: 中国
ブランド名: AVITT TAICHANG OR OTHERS
証明: CE, ISO
モデル番号: 12m設置ブーム
ドキュメント: 製品説明書 PDF
支払いと送料の条件
最小注文数量: 3
価格: $3600-5900 per set
パッケージの詳細: 裸のパッキング、12m 設置ブーム用 1*20'GP または 1*40'HC コンテナ
受渡し時間: 預金を受け取ってから10日
支払条件: TT、LC
供給の能力: 月額4000セット
状態: |
100％新しい |
応用: |
建物とプロジェクト |
タイプ: |
スパイダーモバイル |
働くブーム: |
11.2m |
ローテーション範囲: |
360 |
電気要素: |
ChntまたはSchneider |
電源: |
380V/50Hz または顧客の要求に応じて |
色: |
黄色か,顧客のニーズに応じて |
制御システム: |
普通に |
状態: |
100％新しい |
応用: |
建物とプロジェクト |
タイプ: |
スパイダーモバイル |
働くブーム: |
11.2m |
ローテーション範囲: |
360 |
電気要素: |
ChntまたはSchneider |
電源: |
380V/50Hz または顧客の要求に応じて |
色: |
黄色か,顧客のニーズに応じて |
制御システム: |
普通に |

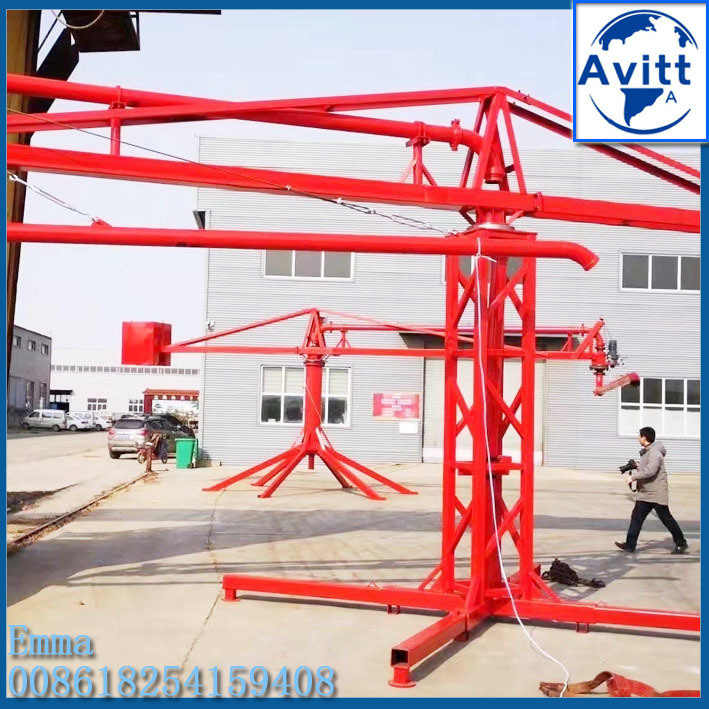

Double Electric Slewing 12m Concrete Placing Boom Cable and Remote Control
Performance parameters
Мах. boom length - 11. m;
Concrete pipe line (steel, DN125 mm)
Support - outrigger (4 legs);
Remote control - wired remote control.
Specification
| Model | 12m electric type | ||
| Performance | Horizontal reach(m) | 11.2 | |
| Rotation(°) | 360° | ||
| Slewing brake | Normally closed | ||
| Working environment temperature | -20℃～40℃ | ||
| Weight(T) | Without counterweight | 1.2 | |
| With Counterweight | 1.8 | ||
| Control System | Power Supply | 380V/50HZ, 3Phase | |
| Power(kW) | 750w*2 | ||
| Control mode | remote | ||
| Boom | Duct cleaning method |
Wash/Dry cleaning |
|
| Boom open way | Two | ||
| Inner diameter of delivery pipe(mm) | Φ125 | ||
| End rubber hose(m) | 2 | ||
The concrete placing boom consists of arm assembly, a rotating device, upper and lower supports, a chassis, concrete pipelines, and an electrical control system.
The boom is a 2 section box structure, which is extended and folded by.
When combined with a rotating mechanism, it can transport concrete to the required construction surface.
The electrical control system can achieve wired and remote operation.
Service
a. Rapid response to any inquiry(within 3 hours) and 24 hours on-line service.
b. Competitive price which directly work with facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time.
e. Easy-worn Spare parts is free supplied along with the tower crane.
f. 12 months super long time guarantee period.
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Other types tower cranes, topless and luffing type are also available, besides, we accept OEM according to clients needs.
